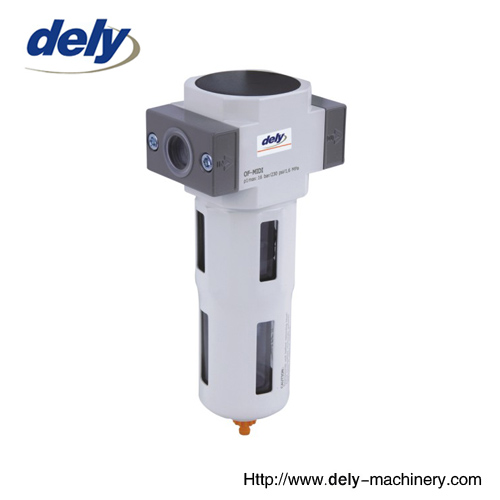

OF Festo Air Filter Regulator

Model: OF-F3/4, MAXI
Place of Origin: Zhejiang,China (Mainland)
Structure: Absorbent Filter
Function: Air Filter
Material: Others
Brand Name: DELY

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TProduction Capacity:100~10000Pieces/Month
Means of Transport:Land, Ocean, AirPacking:Standard Export
Delivery Date:1~20Working days

Product name:           OF filter
Modle number:           Mini type          Midi type                 Maxi type
                                       G1/8,                  G3/8,                        G3/4,
                                       G1/4,                  G1/2,                        G1,
                                       G3/8,                  G3/4
the regulator color:     YELLOW, GREEN
thread:                           BSPT,    BSP, NPT and so on

new type:     OF, M5,   (working pressure: 0~10bar)

                                                                             OF filter

Introduction
The OF with water separator cleans the compressed air of fluid oil,lcondensation and dirt particles,for special application,the standard 40μm filter element may easily be replaced by 5μm filter element.

Symbol

Ordering Code

OF1/4*MINI*
|||||
ModelConnectionGrade of filtrationSizeCondensate drain

1/8 1/4 3/8 1/2 3/4 1Blank:40μm 5M:5μmMINI           MIDI            MAXIBlank:Manual condensate drain




A:Automatic condensate drain



Specification

FiltersMINIMIDIMAXI
40μmManual condensate drainOF-1/8-MINIOF-1/4-MINIOF-3/8-MINIOF-3/8-MIDIOF-1/2-MIDIOF-3/4-MIDIOF3/4-MAXIOF-1-MAXI
5μmOF-1/8-5M-MINIOF-1/4-5M-MINIOF-3/8-5M-MINIOF-3/8-5M-MIDIOF-1/2-5M-MIDIOF-3/4-5M-MIDIOF-3/4-5,-MAXIOF-1-5M-MAXI
40μmAutomatic condensate drainOF-1/8-5M-MINIOF-1/4-5M-MINIOF-3/8-5M-MINIOF-3/8-5M-MIDIOF-1/2-5M-MIDIOF-3/4-5M-MIDIOF-3/4-5,-MAXIOF-1-5M-MAXI
5μmOF-1/8-5M-MINI-AOF-1/4-5M-MINI-AOF-3/8-5M-MINI-AOF-3/8-5M-MIDI-AOF-1/2-5M-MIDI-AOF-3/4-5M-MIDI-AOF-3/4-5M-MAXI-AOF-1-5M-MAXI-A
MediumCompressed Air
Features of structureSintered filter with water sparator
Mounting typePipe mounting or foot mounting
Assembly positionVertical ±5°
ConnectionG1/8G1/4G3/8G3/8G1/2G3/4G3/4G1
Standard nominal flow rateOU-…(-A)10001200140027003000300050005000
OU-…-5M-(-A)600950110018001900190032003300
Working pressureManual condensate drainMax:16bar
Automatic condensate drain1.5~12bar
Grade of filtration40μm/5μm
Max.condensate capacity22ml
Temperature range0~60℃
Materials informationHousing:Zinc die-casting;Filter bowl/oil bowl:PC;Metal bowl guard:Aluminium alloy;Sealing:NBR



Oerall Dimensions

ModelE3E4E7E8E9F1
OF-…-MINI403926452G1/8/G1/4/G3/8
OF-…-MIDI554738570G1/8/G1/2/G3/4
OF-…-MAXI6653396/11680/91G3/4/G1


ModelF4F5ΦL1L2L3H4H5H6H8H9
OF-…-MINIM44.544351117.52015144129
OF-…-MIDIM55.571602224.53215179156
OF-…-MAXIM55.571602224.532/4015203175


Company Profile
:

FENGHUA KAIYANG ELECTROMECHANICAL CO.,LTD. specailly manufacturer and market hydraulic ball valve,hydraulic fitting,pneumatic control element,air source units,pneumatic execute element and pneumatic assistant element.We have passed ISO9001:2000 quality system authentication.With advanced technology and equipment,good quality,our products sale far to many countries.In order to meet more and more customer's requirements.
We always stick to the enterprise spirit"Quality First,Good Serivice,Mutal Benefit"
